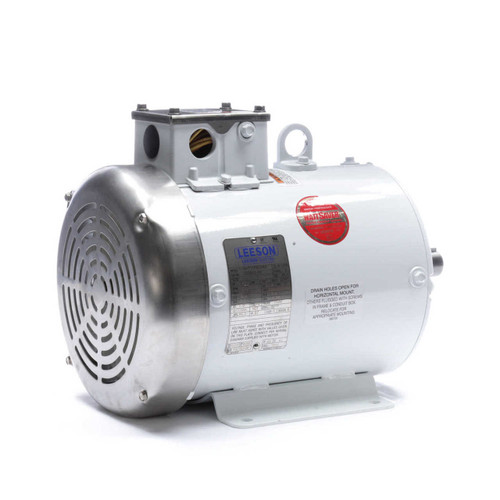

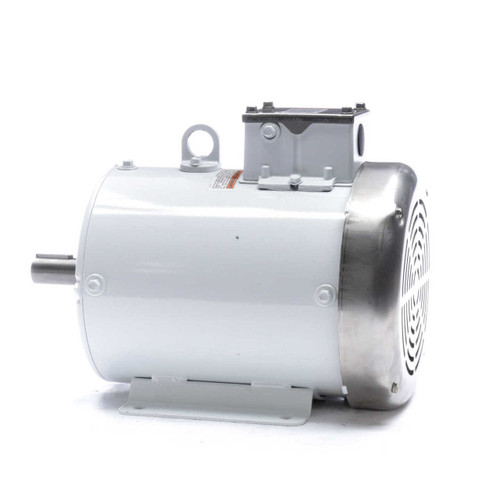

132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor
132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor

Leeson

132246.00 Leeson | 2 hp 1140 RPM 184TZ 230/460V Feather Picker Motor

(No reviews) Write a Review
$1,459.35
$1,056.62
SKU 132246.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 2 HP
RPM 1140
Phase Three Phase
Frame 184TZ
Enclosure TEFC
Hertz 60 Hz
Amperage 6.4/3.2 Amps
Service Factor 1.5
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 2 hp 1175 RPM, 6.4/3.2 amps, 208-230/460V 60hz. Three Phase
  • NEMA 184TZ Frame, Shaft 1 1/8" x 2.81"
  • TEFC
  • Washdown duty features including shaft seals
  • USDA approved food-safe paint
  • Extra high breakdown torques
  • Service Factor 1.5; No overload Protection
  • Class F Insulation
  • Epoxy painted for corrosion protection
  • One Year Manufacture Warranty

Replacement motors used in Poultry feather picker machines.

Model C184T11FB24A; 132246.00, Replaces G131575.00

Warranty Information
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 2 HP
RPM 1140
Phase Three Phase
Frame 184TZ
Enclosure TEFC
Hertz 60 Hz
Amperage 6.4/3.2 Amps
Service Factor 1.5
Insulation Class Class F
!
