sale
Leeson
121934.00 Leeson | 2 hp 1740 RPM 145T 208-230/460V Feather Picker Motor
(No reviews)
Write a Review
Write a Review
Leeson
121934.00 Leeson | 2 hp 1740 RPM 145T 208-230/460V Feather Picker Motor
$747.50
$633.31
SKU
121934.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
2 HP
RPM
1740
Phase
Three Phase
Frame
145T
Hertz
60 Hz
Amperage
5.8/2.9 Amps
Service Factor
1.25
Insulation Class
Class F
121934.00 Leeson | 2 hp 1740 RPM 145T 208-230/460V Feather Picker Motor
This Leeson 2 hp motor is designed as a direct replacement for poultry feather picker machines, including models C145T17FB87A, 121934.00, and G121191.00. It delivers reliable performance with high breakdown torque and is suitable for washdown environments.
Key Specifications
- Horsepower: 2 hp
- RPM: 1740
- Voltage: 208-230/460V, 60 Hz, Three Phase
- Amperage: 5.8/2.9 amps
- Frame / Diameter: NEMA 145T

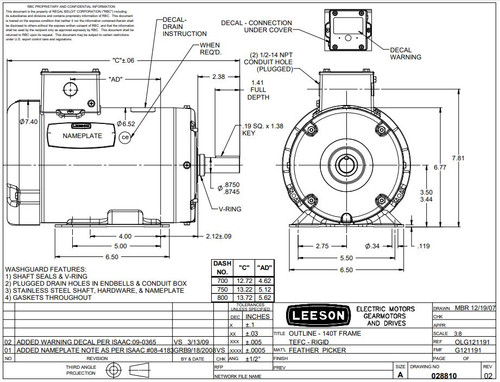

- Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
Product Features & Fitment
This motor features USDA-approved food-safe epoxy paint and shaft seals for washdown duty, ensuring corrosion resistance and durability in hygienic environments. It has a service factor of 1.25 and Class F insulation, making it suitable for demanding industrial applications without built-in overload protection.
Cross Reference
- G121191.00
Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 2 HP |
| RPM | 1740 |
| Phase | Three Phase |
| Frame | 145T |
| Hertz | 60 Hz |
| Amperage | 5.8/2.9 Amps |
| Service Factor | 1.25 |
| Insulation Class | Class F |
- G121191.00
