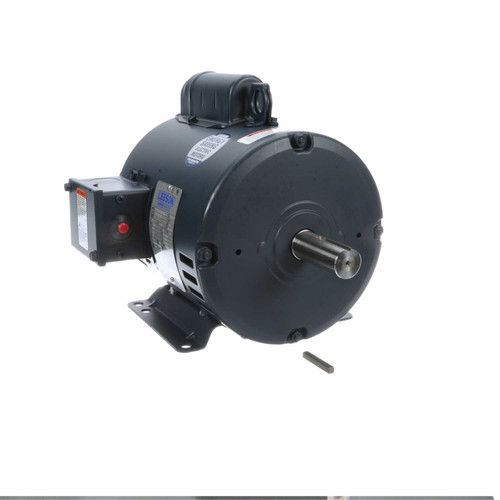

131536.00 Leeson | 2 hp 1725 RPM 182T Frame 115/208-230 Volts Open Drip

• 2 hp 1725 RPM, 24.5/12.4 amps 115/208-230 Volts 60hz. single Phase Motor
• NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
• Overload Protection = Manual
• Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

 P182C17DB10A, 131536.00
