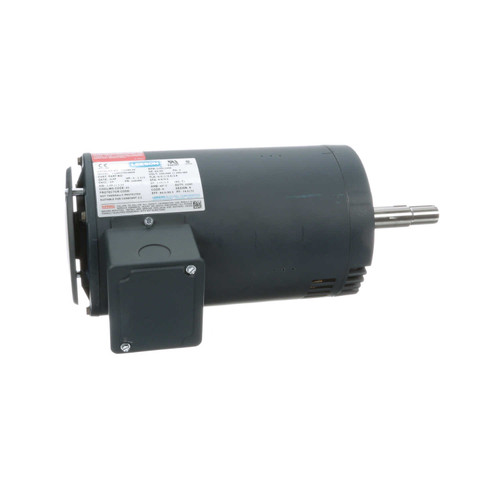

122080.00 Leeson | 2 hp 1740 RPM 145JMV Frame ODP 230/460 Volts
(No reviews)
Write a Review
Write a Review
Leeson
122080.00 Leeson | 2 hp 1740 RPM 145JMV Frame ODP 230/460 Volts
$312.80
$264.96
SKU
122080.00
UPC
6.63E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
2 HP
RPM
1740
Phase
Three Phase
Frame
145JMV
Enclosure
ODP
Hertz
60 Hz
Amperage
6.0/3.0 Amps
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 2 hp 1740 RPM 145JMV Frame, 6.0/3.0 amps 230/460V 60hz. Three Phase Motor
- Close Coupled Pump Motor - No Base
- Open Drip Proof (ODP) - Service Factor = 1.15
- Class F Insulation; No Overload Protection
- Continuous duty
- One Year Manufacture Warranty

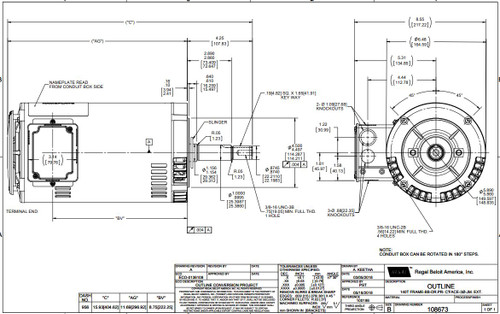

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
Model C145T17DC48A; 122080.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 2 HP |
| RPM | 1740 |
| Phase | Three Phase |
| Frame | 145JMV |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 6.0/3.0 Amps |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
