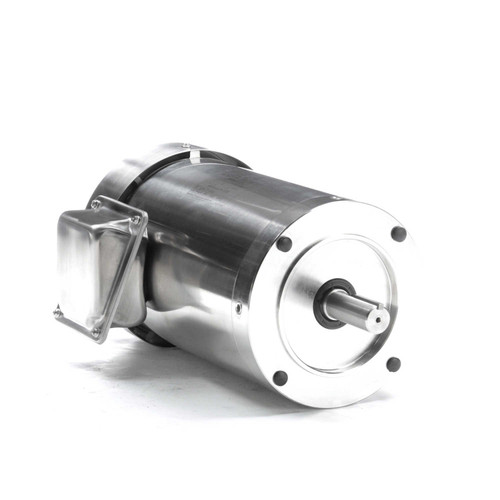

191570.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC 208-230/460 Volts Stainless Steel

• 2 hp 1800 RPM, 5.4/2.7 amps, 208-230/460 Volts 60hz. Three Phase

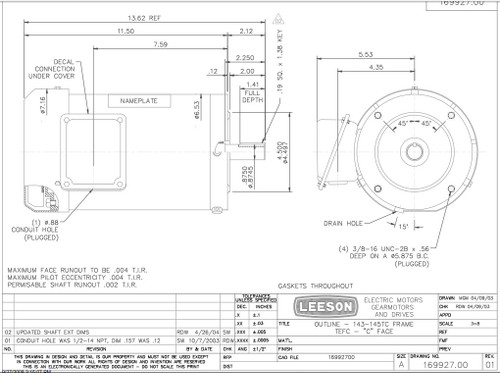

• NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
• TEFC Totally Enclosed Fan cooled - Service Factor = 1.15; Reversible
• All Stainless Steel - No Base - C Face Mount
• Class F Insulation
• One Year Manufacture Warranty

The new Leeson Stainless Steel Motors are tough to withstand the severe washdown environments. Leeson Stainless Steel Motors' all exterior components frame, base, endshields, fan guard, shaft, hardware, conduit box and cover are made from 300 series Stainless steel for maximum corrosion resistance. Nameplate data is permanently laser-etched into the motor frame no Mylar nameplate that can wash off or riveted metal nameplate to trap dirt. No paint or any type of coating is used on the exterior of the Leeson Washguard motors. Leeson Electric's Washguard SST Stainless Steel Motor offers features above and beyond these other motors and at a competitive price.

Replaces Leeson G191226.00, 191226.00
Replaces Marathon N438B, 145TTWD6528
