191492.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC 208-230/460 Volts Stainless Steel

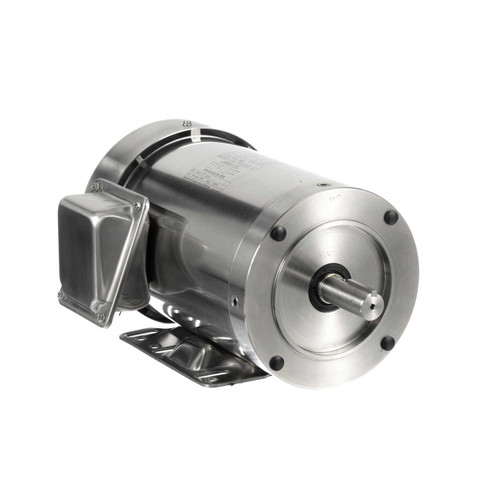

191492.00 Leeson 3 hp 3600 RPM 145TC Frame TEFC Stainless Steel Motor

This Leeson 3 hp stainless steel motor operates at 3600 RPM and is designed for severe washdown environments. It replaces models G191293.00 and Marathon N459 (145TTWD6030), offering reliable performance in industrial applications requiring corrosion resistance and durability.

Key Specifications

• Horsepower: 3 hp
• RPM: 3600
• Voltage: 208-230/460 Volts
• Amperage: 7.2/3.6 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145TC Frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible

Product Features & Fitment

Constructed entirely of 300 series stainless steel—including frame, base, endshields, fan guard, shaft, hardware, conduit box, and cover—this motor provides maximum corrosion resistance for harsh washdown environments. It features a rigid base with C face mounting for flexible installation options. The nameplate data is permanently laser-etched into the motor frame to prevent wear or contamination.

Cross Reference

• G191293.00
• Replaces Marathon N459, 145TTWD6030

Warranty

1 Year Manufacturer Warranty
