191490.00 Leeson | 2 hp 3600 RPM 145TC Frame TEFC 208-230/460 Volts Stainless Steel

SKU:: 191490
UPC:: 6.92E+11
Weight:: 47.00 LBS
Width:: 20.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230/460V
Horsepower:: 2 HP
RPM:: 3600
Phase:: Three Phase
Frame:: 145TC
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 5.0/2.5 Amps
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $1,610.00

Now: $1,540.94

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

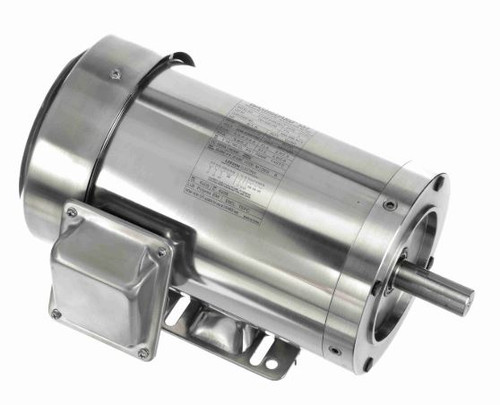

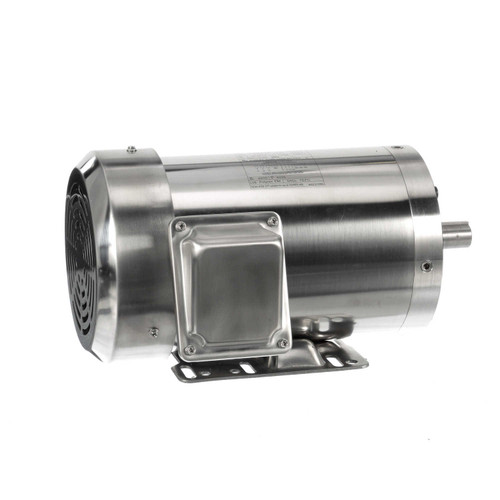

191490.00 Leeson 2 hp 3600 RPM 145TC Frame TEFC Stainless Steel Motor

This Leeson 2 hp stainless steel motor operates at 3600 RPM and is designed for severe washdown environments. It replaces models G191222.00 and Marathon N458A, making it ideal for industrial applications requiring corrosion-resistant, durable motor solutions.

Key Specifications

Horsepower: 2 hp
RPM: 3600
Voltage: 208-230/460 Volts, 60 Hz
Amperage: 5.0/2.5 Amps
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 145TC Frame

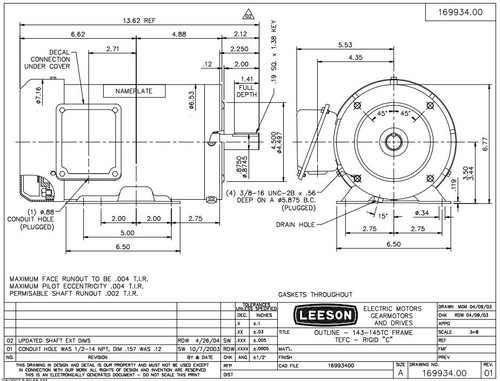

Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
Rotation: Reversible

Product Features & Fitment

Constructed entirely of 300 series stainless steel—including frame, base, endshields, fan guard, shaft, hardware, conduit box, and cover—this motor offers maximum corrosion resistance for harsh washdown environments. It features a rigid base and C-face mount for straightforward installation. The nameplate data is permanently laser-etched into the motor frame to prevent wear or loss of information. The motor includes Class F insulation and a service factor of 1.15 for enhanced performance and durability.
