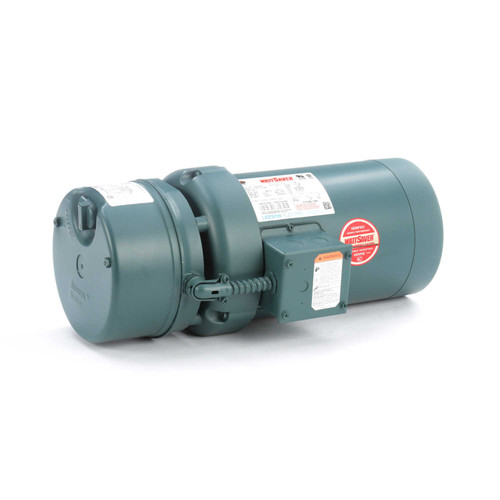

122253.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

122253.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face (No Base) Brake Motor 208-230/460V

This Leeson 2 hp brake motor operates at 1800 RPM and is designed for three-phase industrial applications. It replaces Marathon model K476 and 145TTFR16429, providing reliable braking and motor performance in a compact, base-less design.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 5.8/2.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145TC Frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length

Product Features & Fitment

This motor features a fail-safe, spring-set brake that automatically stops and holds the load when power is removed. The brake coil (230/460 VAC, 60 Hz) is wired into the motor’s conduit box for easy connection and can be actuated either by power loss or independently. A manual reset is included for convenience during power outages. The motor has a round body design without a base, requiring appropriate mounting accommodations.

Cross Reference

• Marathon K476, 145TTFR16429

Warranty

1 Year Manufacturer Warranty
