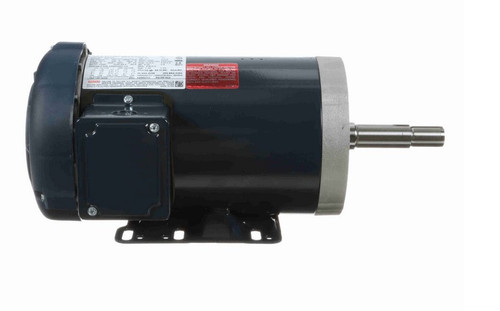

GT3106 Marathon 2 hp 3 phase 3600 RPM 145JM Frame 230/460V TEFC Marathon Close Coupled Pump Motor

SKU:
GT3106
Availability:
Discontinued
Weight:
50.00 LBS
Shipping:
Free Shipping
$0.00

CURRENTLY OUT OF STOCK

Discontinued. No replacement at this time.

  • 2 hp 1800 RPM 5.0/2.5 amps 230/460 Volts 60hz. 3 phase motor

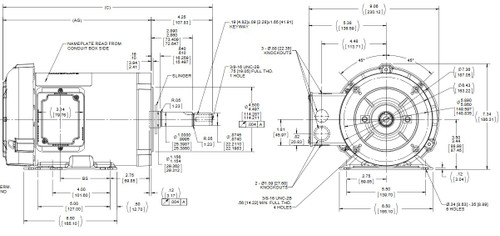

  • NEMA 145JM frame, C-face, Internal threaded shaft 7/8" diameter x 2 1/4"
  • Service Factor = 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball bearings, Class F insulation
  • One Year Manufacture Warranty

Designed for continuous duty service on close coupled pumps. Motor has rigid base with JM shaft. TEFC = Totally Enclosed Fan Cooled, Wiring diagram on motor name plate

Marathon # 145TTFR16013
Replaces Leeson C145T34FK45AA; 122089.00, G121859.00
