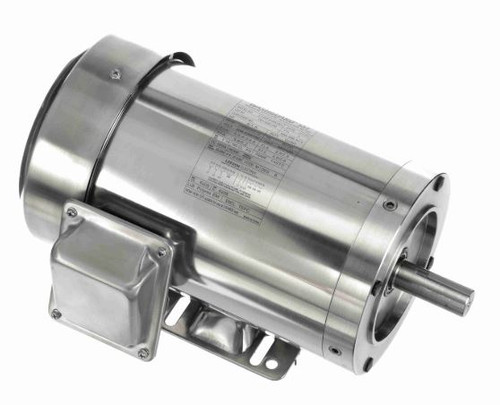

191490.00 Leeson | 2 hp 3600 RPM 145TC Frame TEFC 208-230/460 Volts Stainless Steel

191490.00 Leeson 2 hp 3600 RPM 145TC Frame TEFC Stainless Steel Motor

This Leeson 2 hp stainless steel motor operates at 3600 RPM and is designed for severe washdown environments. It replaces models G191222.00 and Marathon N458A, making it ideal for industrial applications requiring corrosion-resistant, durable motor solutions.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 208-230/460 Volts, 60 Hz
• Amperage: 5.0/2.5 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145TC Frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible

Product Features & Fitment

Constructed entirely of 300 series stainless steel—including frame, base, endshields, fan guard, shaft, hardware, conduit box, and cover—this motor offers maximum corrosion resistance for harsh washdown environments. It features a rigid base and C-face mount for straightforward installation. The nameplate data is permanently laser-etched into the motor frame to prevent wear or loss of information. The motor includes Class F insulation and a service factor of 1.15 for enhanced performance and durability.

Cross Reference

• G191222.00
• Replaces Marathon N458A, 145TTWD6001

Warranty

1 Year Manufacturer Warranty
