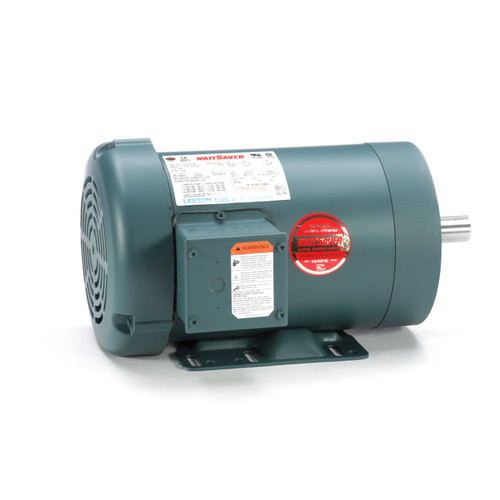

121673.00 Leeson | 2 hp 3600 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

121673.00 Leeson | 2 hp 3600 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

This Leeson 2 hp, 3600 RPM three-phase motor is designed for general-purpose industrial applications requiring a rigid base mount with a C-face. It replaces model G121510.00 and features a totally enclosed fan-cooled (TEFC) design for reliable operation in various environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 4.8/2.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount with a C-face, including threaded bolt holes on the face for easy mounting of pumps or gearheads. The keyed shaft and wiring diagram on the nameplate facilitate straightforward installation and connection. This motor is suitable for applications requiring a durable, three-phase electric motor with overload protection not included.

Cross Reference

• G121510.00

Warranty

1 Year Manufacturer Warranty
