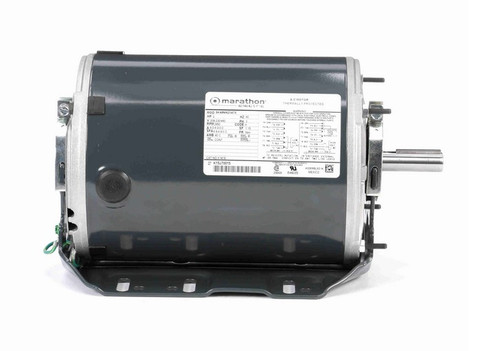

K1416 Marathon 2 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

K1416 Marathon 2 hp 3 Phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon 2 horsepower, 3-phase motor operates at 3600 RPM and is designed for general-purpose industrial applications. It is a direct replacement for Leeson models C6T34DR38A, E114196.00, E114196, E113897.00, and E113897, offering reliable performance in various equipment requiring a 3-phase electric motor.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 208-230/460V, 60 Hz
• Amperage: 6.1-6.0/3.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount for vibration reduction and ease of installation. It includes a keyed shaft for secure coupling and is equipped with Class B insulation for thermal protection. The motor’s wiring diagram is conveniently located on the nameplate to assist with proper electrical connections. Overload protection is automatic, enhancing motor safety during operation.

Cross Reference

• Leeson C6T34DR38A, E114196.00, E114196, E113897.00, E113897

Warranty

1 Year Manufacturer Warranty
