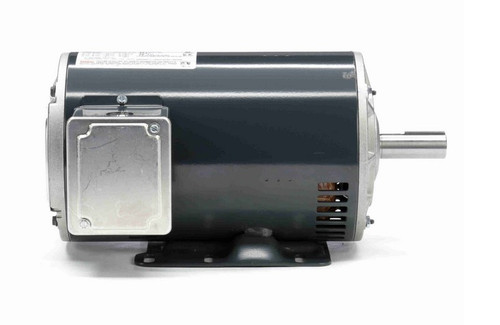

X251 Marathon 5 hp 3 phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

X251 Marathon 5 hp 3 Phase 3600 RPM 56 Frame 208-230/460V ODP Resilient Mount Marathon Motor

This Marathon 5 horsepower motor is designed for industrial applications requiring a reliable 3-phase power source. It features a 56 frame and operates at 3600 RPM, suitable for replacing similar motors in general-purpose machinery.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 13.5-12.4/6.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base mount for vibration reduction and ease of installation. It is equipped with Class B insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
