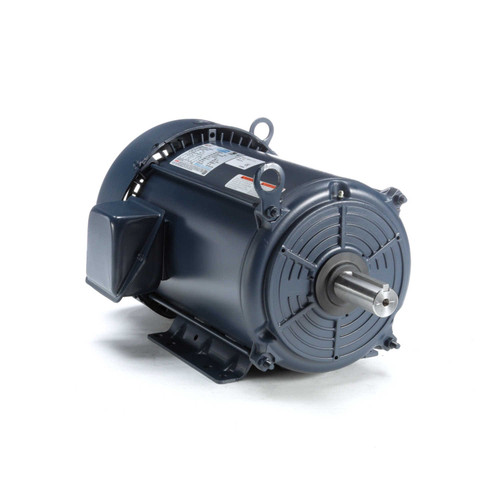

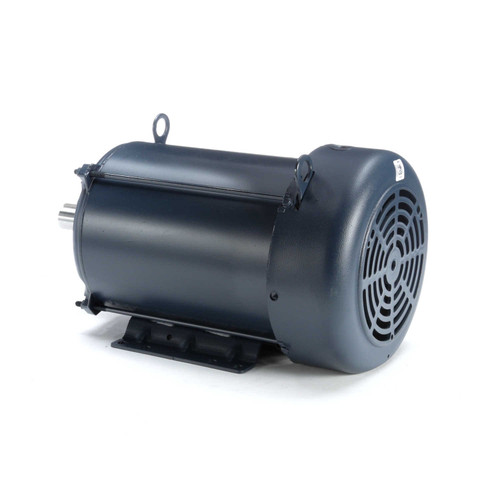

141312.00 Leeson | 2 hp 850 RPM 213T Frame 208-230/460 Volts TEFC

• 2 hp 850 RPM, 8.0/4.0 amps 208-230/460 Volts 60hz. Three Phase Motor
• NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
• Service Factor: 1.15 - overload protection = None
• Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

141312.00, Replaces G140516.00
