2 RPM Pellet Stove Auger Gear Motor 115V, (Whitfield Quest, Merkle-Korff, Earth Stove)

2 RPM Pellet Stove Auger Gear Motor 115V (Whitfield Quest, Merkle-Korff, Earth Stove)

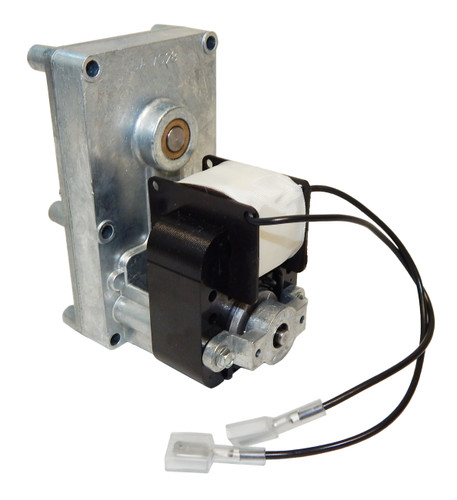

This 2 RPM auger gear motor is designed as a direct replacement for pellet stove auger applications, compatible with Whitfield Quest, Merkle-Korff, Earth Stove models, and various others. It provides reliable, continuous-duty operation to ensure consistent pellet feed performance.

Key Specifications

• RPM: 2
• Voltage: 115V
• Amperage: 1.48 amps

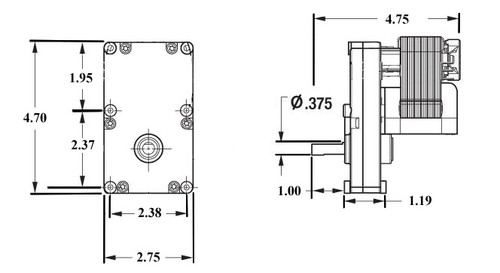

• Shaft Dimensions: 3/8" diameter x 1" length with flat (no hole for pin)
• Rotation: Clockwise facing shaft (mechanically reversible)
• Torque: 100 inch-pounds
• Mounting: 6 bolt holes, 8-32 thread size

Product Features & Fitment

The motor includes a 7-inch lead wire with 1/4" male terminals for straightforward electrical connection. It is designed for continuous duty and can be mechanically reversed by removing the motor from the gearbox, rotating the motor coil, and reassembling. This motor serves as a suggested replacement for Comfort Industries V07926AAD9 and numerous Englander models, including but not limited to 10-CDV, 25-CB120, 55-SHP240 series, and others. Proper mounting requires aligning the 6-bolt pattern and ensuring the shaft orientation matches the application.

Cross Reference

• Comfort Industries V07926AAD9
• Englander
