Whitfield Pellet Stove Blower 12126109, 12146109

Whitfield Pellet Stove Blower 12126109, 12146109

This Whitfield Pellet Stove Replacement Blower is designed as a direct aftermarket replacement for models including 7021-7786, 702111470, 7021-11470, and Whitfield part numbers 12126109 and 12146109. It is ideal for pellet stove applications requiring reliable airflow and consistent performance.

Key Specifications

• Horsepower: 1/35 hp
• RPM: 3000
• Voltage: 115 Volt
• Amperage: 1.5 amps
• Rotation: CCWSE
• Bearings: Sleeve Bearings

Product Features & Fitment

The blower features a sheet metal housing with a plastic blower wheel and includes 6" leads terminating in a flat connector plug with two wires for easy electrical connection. The outside flange dimensions measure 4 3/8" x 4", with bolt hole center-to-center spacing of 3 3/4" x 3 3/8". No gasket is included with this unit. Manufactured by Rotom, this blower ensures compatibility and straightforward installation as a replacement part.

Cross Reference

• 7021-7786, 702111470, 7021-11470, Whitfield 12126109, 12146109

Warranty

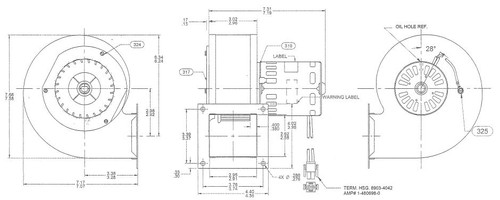

• Dimensional Drawing
