HD200P2F Nidec | 200 hp 1800 RPM 447T Frame 460V TEFC Nidec Electric Motor
HD200P2F Nidec | 200 hp 1800 RPM 447T Frame 460V TEFC Nidec Electric Motor
HD200P2F Nidec | 200 hp 1800 RPM 447T Frame 460V TEFC Nidec Electric Motor
HD200P2F Nidec | 200 hp 1800 RPM 447T Frame 460V TEFC Nidec Electric Motor

Nidec

HD200P2F Nidec | 200 hp 1800 RPM 447T Frame 460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$14,146.15
$12,630.11
SKU HD200P2F
UPC 7.86E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 200 HP
RPM 1800
Phase Three Phase
Frame 447T
Enclosure TEFC
Amperage 226.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 200 hp 1800 RPM, 226.0 amps 460 Volts Three Phase Motor
  • NEMA 447T Frame Keyed Shaft 3 3/8" Diameter x 8 1/2"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

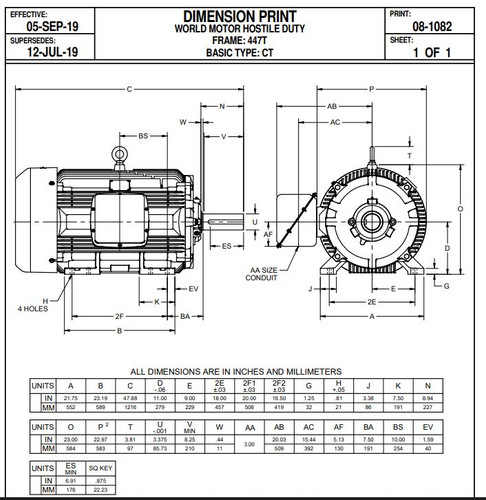

  • "C" Dimension = 47.9"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GK02, H200P2F

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 200 HP
RPM 1800
Phase Three Phase
Frame 447T
Enclosure TEFC
Amperage 226.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
