2193 Nidec 3/4 hp 1100 RPM 208-230/460V 6.5" Dia. (Resilient Base) 1-Speed Open Condenser Motor
2193 Nidec 3/4 hp 1100 RPM 208-230/460V 6.5" Dia. (Resilient Base) 1-Speed Open Condenser Motor
2193 Nidec 3/4 hp 1100 RPM 208-230/460V 6.5" Dia. (Resilient Base) 1-Speed Open Condenser Motor
2193 Nidec 3/4 hp 1100 RPM 208-230/460V 6.5" Dia. (Resilient Base) 1-Speed Open Condenser Motor

Nidec

2193 Nidec 3/4 hp 1100 RPM 208-230/460V 6.5" Dia. (Resilient Base) 1-Speed Open Condenser Motor

(No reviews) Write a Review
$780.85
$697.36
SKU 2193
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1100
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 4.8/2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
Cross Reference K63HXTPF-4856, K063TPF4856011B, F48SU6V14, X432, 5KCP48TN9625 (shaft is 5/8 inch, original is 1/2 inch).   IF REPLACING 5KCP48TN9625: Need to purchase the adapter that is needed: 8539-6005
Adding to cart… The item has been added
Description
  • 3/4 hp 1100 RPM, 4.8/2.5 amps 208-230/460V Volts 60 Hz PSC Motor
  • NEMA 6.5" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 6" long
  • Service Factor = 1, Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class B Insulation, Rev
  • 1 Year Manufacture Warranty

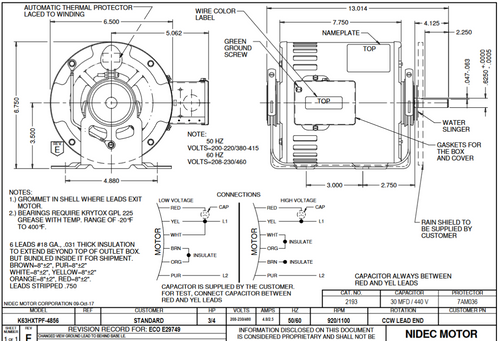

Replacement Condenser Fan Motor for certain brands. Wiring diagram on motor name plate. Open, K063TPF4856011B

Specifications
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1100
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 4.8/2.5 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Mounting Stud
Cross References

K63HXTPF-4856, K063TPF4856011B, F48SU6V14, X432, 5KCP48TN9625 (shaft is 5/8 inch, original is 1/2 inch).   IF REPLACING 5KCP48TN9625: Need to purchase the adapter that is needed: 8539-6005

!
