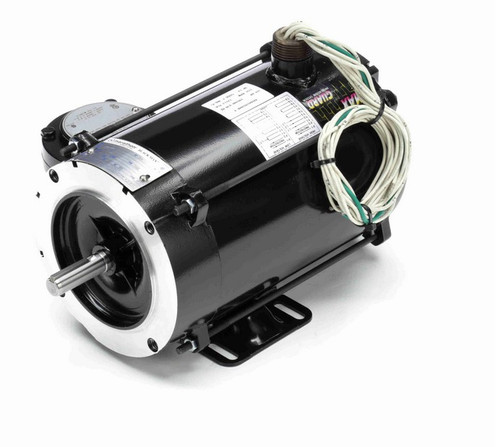

Y603 Marathon 3/4 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

SKU:
Y603
Weight:
38.00 LBS
Shipping:
Free Shipping
STATUS:
DISCONTINUED
$0.00

CURRENTLY OUT OF STOCK

Motors Discontinued

  • 3/4 hp 1800 RPM, 2.4/1.2 amps 230/460 Volts 60 Hz 3-Phase
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Inverter (Vector) duty Explosion Proof, three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056H17E5304
