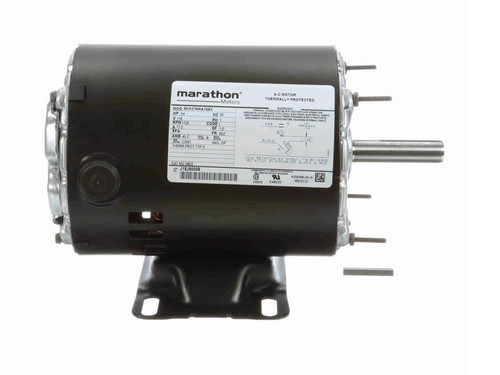

H908 Marathon 3/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

H908 Marathon 3/4 hp 1800 RPM 48 Frame 115V Open Drip Marathon Electric Motor

This Marathon 3/4 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is suitable for replacing or upgrading existing motors with similar specifications in industrial and HVAC equipment.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 11.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This split-phase motor features a rigid base mount and steel endshields for durability. It includes Class B insulation and automatic overload protection for enhanced performance and safety. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
