112528.00 Leeson | 3/4 hp 1800 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

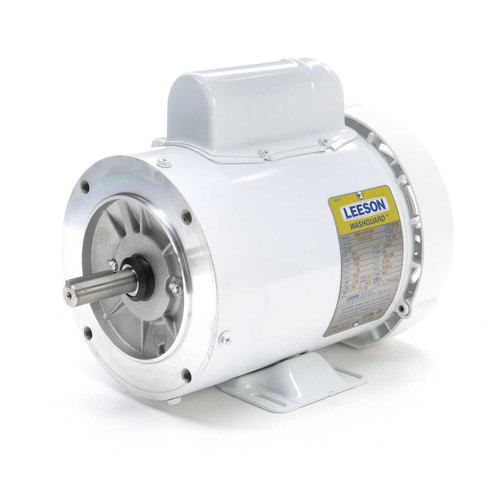

112528.00 Leeson 3/4 hp 1800 RPM 56C Frame (Rigid Base) C-Face Wash Down Duty Motor

This Leeson 3/4 hp single-phase motor operates at 1800 RPM and is designed for wash down duty applications. It replaces Marathon model N541 and is ideal for environments requiring moisture resistance and durability.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 10.8/5.4 A
• Enclosure: Washguard (Rigid Base)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length

Product Features & Fitment

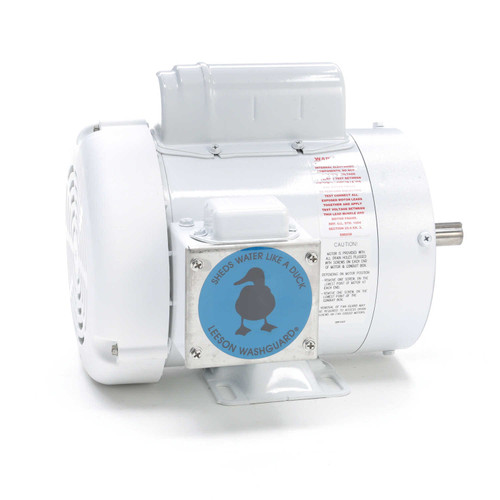

This motor features Leeson's original moisture-shedding "duck" design with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture protection. The motor incorporates the IRIS insulation system and moisture-resistant interior components, making it suitable for wash down environments. It is mounted on a rigid base with a keyed shaft and C-face configuration for versatile installation.

Cross Reference

• Marathon N541, 056C17W5333

Warranty

1 Year Manufacturer Warranty
