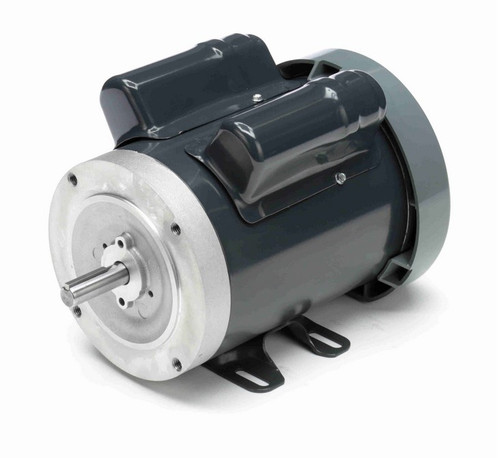

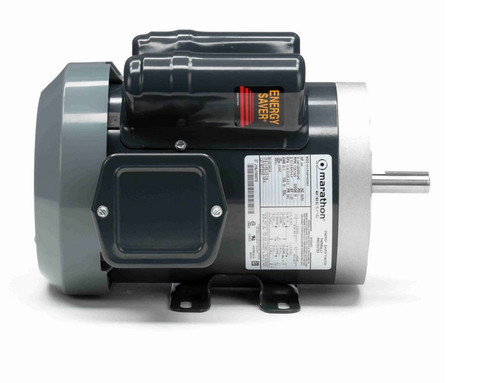

E275 Marathon 3/4 hp 1800 RPM 56C Frame TEFC 100-120/200-240V Marathon Electric Motor

• 3/4 hp 1800 RPM, 9.0-8.8/4.5-4.4 amps 110-120/200-240 Volts 60hz. Capacitor Start Capacitor Run Motor
• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.25, Overload protection = Auto
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 5KCR49PN0099X
