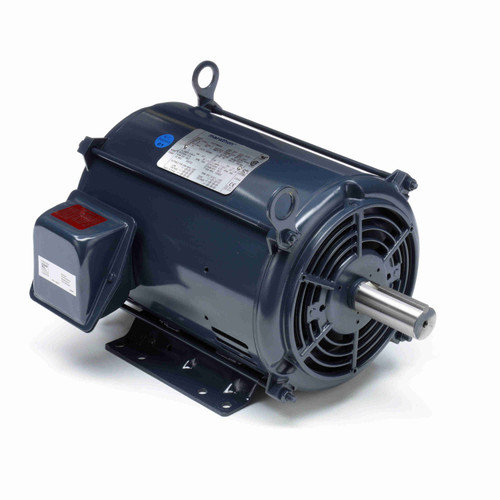

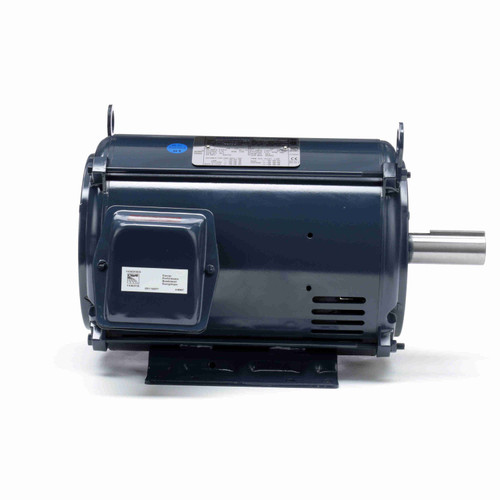

- 3 hp 1200 RPM, 8.4/4.2 amps 230/460 Volts 60hz. Three Phase Motor

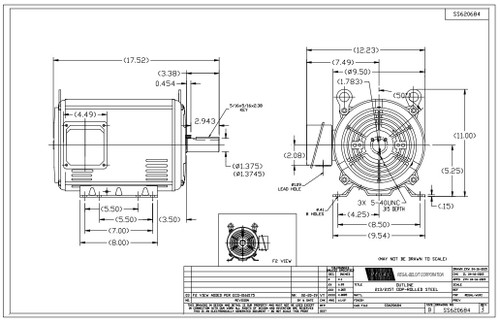

- NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
213TTDBD6076 Replaces Leeson 171574.60, 199688.00, B199688; Dayton 44N962
