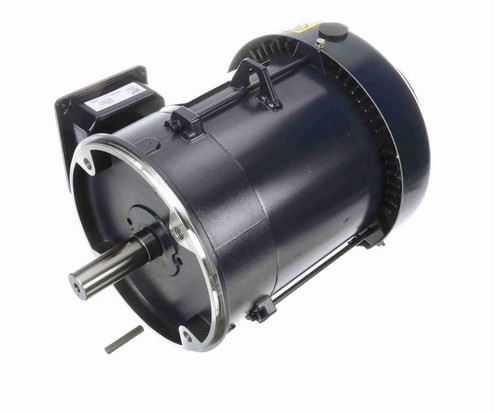

GT1310A Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TEFC (no base) 230/460V Marathon Motor

GT1310A Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TEFC (no base) 230/460V Marathon Motor

The GT1310A is a general-purpose Marathon electric motor designed for industrial applications requiring a 3-phase power source. It replaces Marathon models K640A and 82TTFW16049, as well as Leeson C182T17FC26E (131503.00), and is suitable for driving pumps, gear heads, and other machinery with a C-face mount.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 8.0/4.0 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 182TC Cast Iron Frame
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Cross Reference

• Marathon K640A, 82TTFW16049
• Replaces Leeson C182T17FC26E, 131503.00

Warranty

1 Year Manufacturer Warranty
