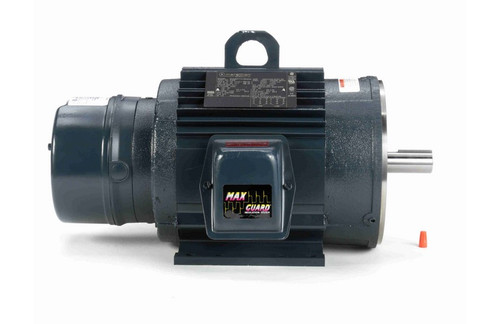

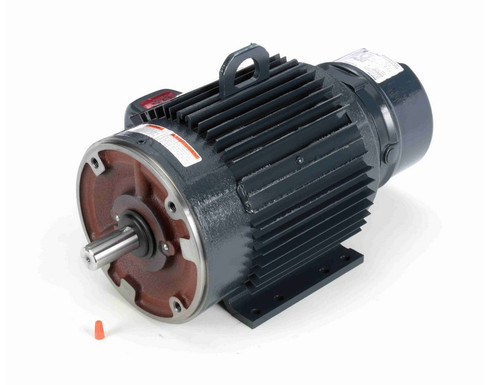

C405 Marathon 3 hp 3 phase 1800 RPM 182TC Frame 230/460V TEFC Marathon Electric Brake Motor

C405 Marathon 3 hp 3 phase 1800 RPM 182TC Frame 230/460V TEFC Marathon Electric Brake Motor

This Marathon electric brake motor delivers 3 horsepower with a 3-phase design, ideal for industrial applications requiring reliable and efficient motor performance. It is designed to replace similar 3 hp motors with a 182TC frame and is suitable for various machinery and equipment.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 8.0/4.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 182TC Frame
• Shaft Dimensions: Keyed shaft, 1-1/4" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and cast aluminum construction for durability and ease of installation. It includes Class F insulation and is designed for general-purpose use in 3-phase systems. The motor is totally enclosed and non-ventilated (TENV), providing protection against environmental contaminants. Wiring diagrams are available on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
