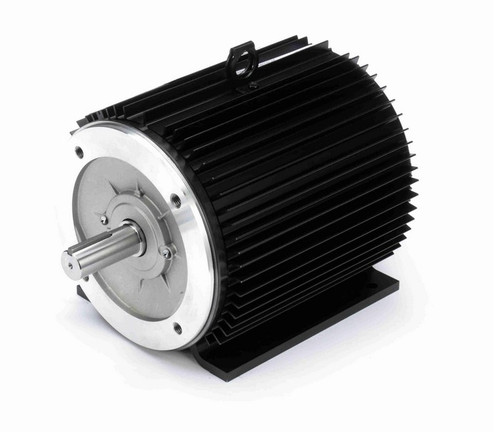

Y541A Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TENV (rigid base) 230/460V Marathon Motor

Y541A Marathon 3 hp 1800 RPM 3-Phase 182TC Frame TENV (rigid base) 230/460V Marathon Motor

SKU:
Y541A
Weight:
77.00 LBS
Width:
14.00 (in)
Height:
14.00 (in)
Depth:
19.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
3 HP
RPM:
1800
Phase:
Three Phase
Frame:
182TC
Enclosure:
TENV
Hertz:
60 Hz
Amperage:
8.2/4.1 Amps
Bearings:
Ball Bearings
Service Factor:
1.0
Insulation Class:
Class F
Mounting:
Rigid Base
Was: $1,680.61
Now: $1,460.50
Adding to cart… The item has been added
  • 3 hp 1800 RPM, 8.2/4.1 amps 230/460 Volts 60 Hz 3-Phase. Encoder Ready
  • NEMA 182TC Aluminum frame, C-face, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.0, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 182THTY7726

!
