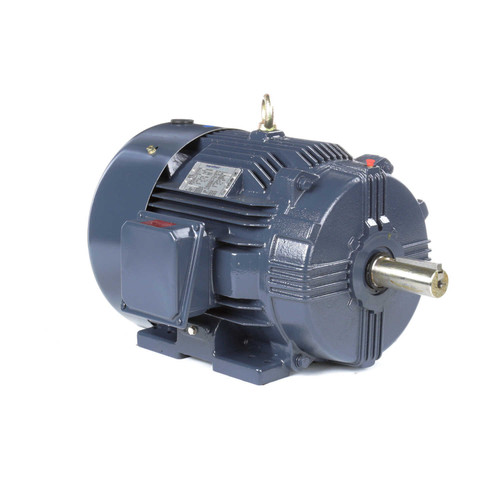

GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor
GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor

Marathon

GT1031A Marathon 30 hp 1800 RPM 286T Frame 230/460V TEFC Marathon Electric Motor

(No reviews) Write a Review
$2,554.27
$2,079.20
SKU MGT1031
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 72.5/36.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 1800 RPM, 72.5/36.5 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 286T Frame Keyed Shaft 1 7/8 " Diameter x 4 5/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

286TTFCD6026 Replaces Leeson 170015.60, 199025.00, B199025.00; Dayton 44Z354

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286T
Enclosure TEFC
Hertz 60 Hz
Amperage 72.5/36.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
