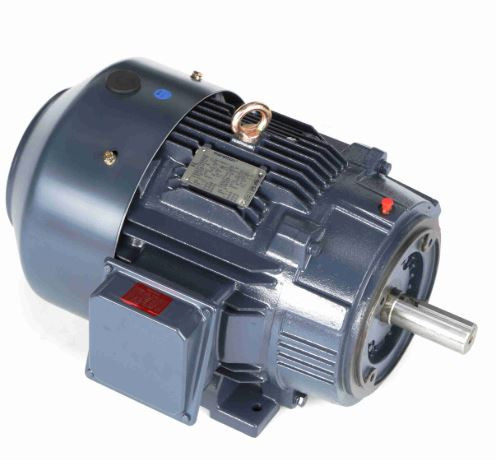

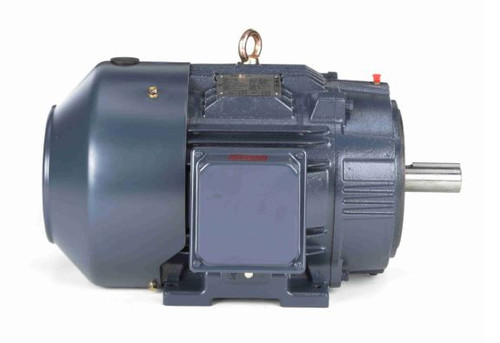

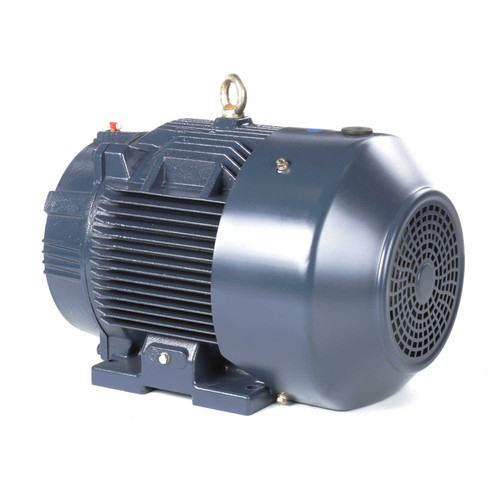

GT1231A Marathon 30 hp 1800 RPM 286TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1231A Marathon 30 hp 1800 RPM 286TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

The GT1231A is a general-purpose 30 hp, 1800 RPM three-phase electric motor designed for various industrial applications requiring a rigid base and C-face mount. It replaces Leeson models 171592.60, B199066.00, and 199066.00, providing reliable performance in demanding environments.

Key Specifications

• Horsepower: 30 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 72.5/36.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 286TC
• Shaft Dimensions: 1 7/8" diameter x 4 5/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a C-face configuration, allowing easy installation and secure mounting. The shaft includes a keyway for positive drive connection, and threaded bolt holes on the face facilitate mounting of pumps or gearheads directly to the motor. A wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Cross Reference

• Leeson 171592.60, B199066.00, 199066.00

Warranty

1 Year Manufacturer Warranty
