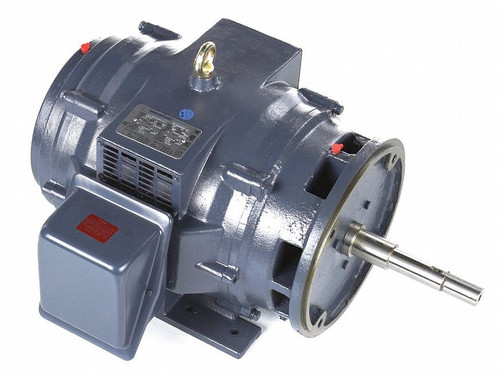

GT2469 Marathon 30 hp 3525 RPM 284JP Frame ODP 230/460V Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT2469 Marathon 30 hp 3525 RPM 284JP Frame ODP 230/460V Marathon Electric Motor
$3,354.21
$2,872.70
SKU
MGT2469
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
30 HP
RPM
3525
Phase
Three Phase
Frame
284JP
Enclosure
ODP
Hertz
60 Hz
Amperage
71.5/35.5 Amps
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 30 hp 3525 RPM 284JP Frame, 71.5/35.5 amps 230/460V 60hz. Three Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Open Drip Proof (ODP) - Service Factor = 1.15
- Class F Insulation; No Overload Protection
- Continuous duty
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
284TTDBD6012 Leeson Model 199992.00, 199992; B199992.00, B199992; Dayton 32UR16
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 30 HP |
| RPM | 3525 |
| Phase | Three Phase |
| Frame | 284JP |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 71.5/35.5 Amps |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
