3256 Nidec 1/6 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor
3256 Nidec 1/6 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor
3256 Nidec 1/6 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor
3256 Nidec 1/6 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor

Nidec

3256 Nidec 1/6 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor

(No reviews) Write a Review
$277.15
$247.71
SKU 3256
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/6 HP
RPM 1725
Phase Single Phase
Frame 48YZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 3.8 Amps
Service Factor 1.75
Insulation Class Class B
Rotation Clockwise
Adding to cart… The item has been added
Description

    1/6 hp 1725 RPM, 3.8 amps 115 Volts 60 Hz Split Phase Motor
    NEMA 48YZ Frame, Special Hot Water Circulator Shaft
    Service Factor: 1.75, Overload protection = Auto
    Resilient Bracket Mount, Sleeve All-Angle Bearings, Class B Insulation, CW rotation shaft end
    1 Year Manufacture Warranty

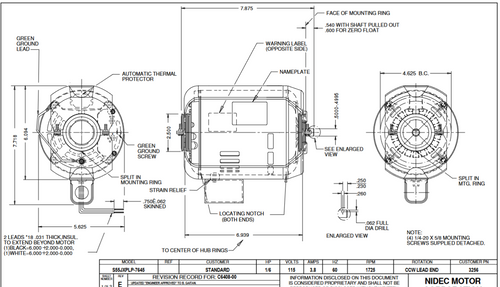

Hot water circulating pump motor. Wiring diagram on motor name plate. ODP = Open Drip Proof. S055PLP7645011B. Replaces 111060, 817025-005

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/6 HP
RPM 1725
Phase Single Phase
Frame 48YZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 3.8 Amps
Service Factor 1.75
Insulation Class Class B
Rotation Clockwise
!
