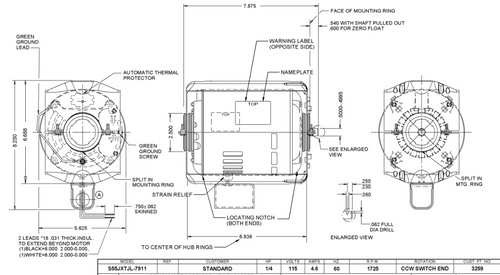

3259 Nidec 1/4 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor

3259 Nidec 1/4 hp 1725 RPM 115V ODP 1-Phase Hot Water Circulating Motor

This Nidec hot water circulating motor is designed for reliable operation in hot water pump applications. It replaces models 111040, 817025-007, and 111050, providing a direct fit for maintenance and repair needs.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Voltage: 115 V
• Amperage: 4.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48YZ
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve All-Angle Bearings

Product Features & Fitment

The motor features a resilient bracket mount and a special hot water circulator shaft designed for durability in circulating pump systems. It includes Class B insulation and an automatic overload protection system. Wiring diagrams are provided on the motor nameplate to assist with installation.

Cross Reference

• 111040, 817025-007, 111050

Warranty

1 Year Manufacturer Warranty
