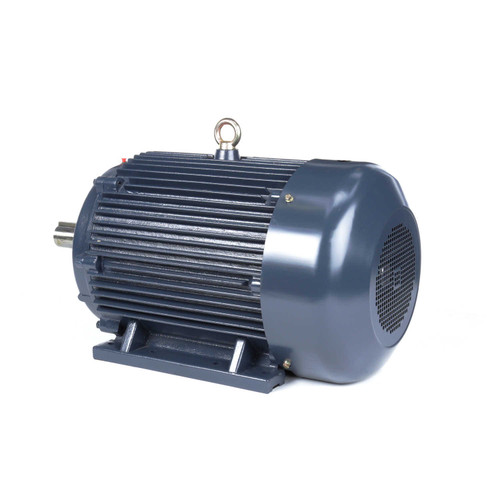

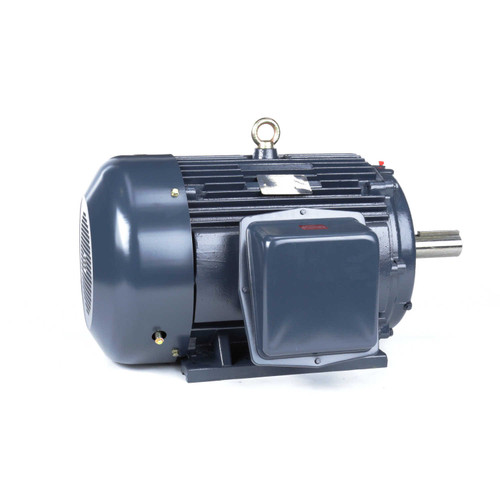

GT1034A Marathon 40 hp 1800 RPM 324T Frame 230/460V TEFC Marathon Electric Motor

SKU:: GT1034A
UPC:: 7.23E+11
Weight:: 625.00 LBS
Width:: 40.00 (in)
Height:: 36.00 (in)
Depth:: 30.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230/460V
Horsepower:: 40 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 324T Frame
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 95.0/47.5 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $3,263.24

Now: $2,794.50

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

GT1034A Marathon 40 hp 1800 RPM 324T Frame 230/460V TEFC Marathon Electric Motor

The GT1034A is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It replaces Leeson models 170019.60, 199028.00, B199028.00 and Dayton 44Z360, offering a robust solution with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

Horsepower: 40 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 95.0/47.5 A
Enclosure: Totally Enclosed Fan Cooled (TEFC)

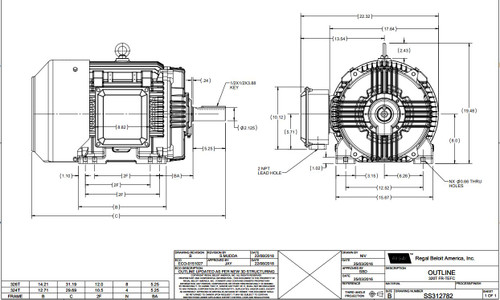

Frame / Diameter: NEMA 324T
Shaft Dimensions: 2 1/8" Diameter x 4 1/4" Length
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a keyed shaft for secure installation and easy alignment. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. Designed with Class F insulation and a service factor of 1.15, it provides durability and reliable overload tolerance without built-in overload protection.
