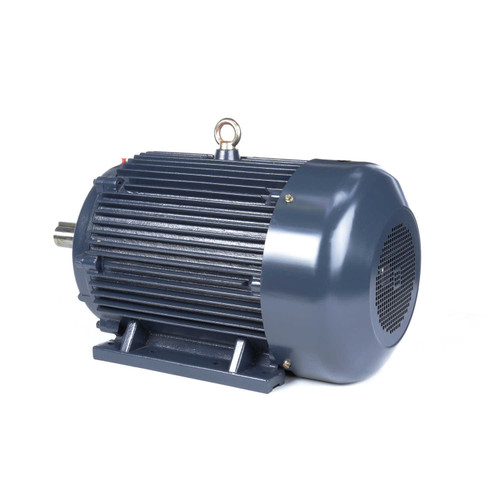

GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor
GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor

Marathon

GT1033A Marathon 40 hp 3600 RPM 324TS Frame 208-230/460V TEFC Marathon Electric Motor

(No reviews) Write a Review
$3,016.45
$2,563.35
SKU MGT1033
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Frame 324TS
Enclosure TEFC
Hertz 60 Hz
Amperage 92.0/46.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base

CURRENTLY OUT OF STOCK

Description
  • 40 hp 3600 RPM, 92.0/46.0 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 324TS Frame Keyed Shaft 1 7/8 " Diameter x 3 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

324TSTFCD6001 Replaces Leeson 170039.60, 199027.00, B199027.00; Dayton 44Z358

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 40 HP
RPM 3600
Phase Three Phase
Frame 324TS
Enclosure TEFC
Hertz 60 Hz
Amperage 92.0/46.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
