sale
Marathon

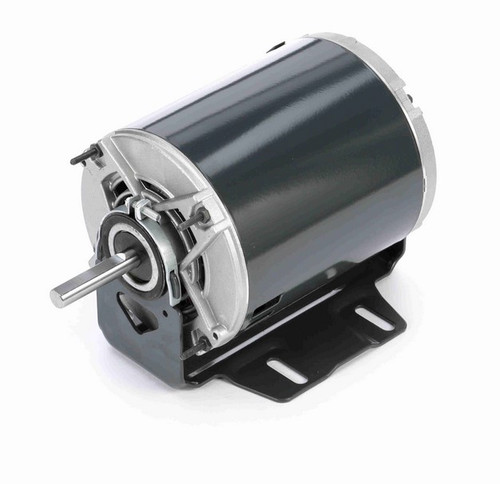

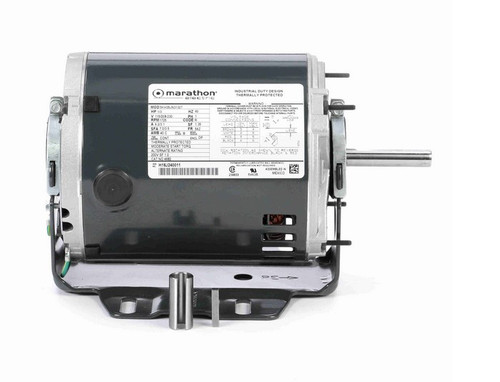

4682 Marathon 1/3 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor
(No reviews)
Write a Review
Write a Review
Marathon
4682 Marathon 1/3 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame Resilient Base Blower Motor
$406.07
$339.95
SKU
M4682
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/3 HP
RPM
1800
Frame
56Z
Enclosure
ODP
Hertz
60 Hz
Amperage
6.2/3.1 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
- 1/3 hp 1800 RPM, 6.2/3.1 amps, 115/208-230 Volts 60 Hz, Split Phase

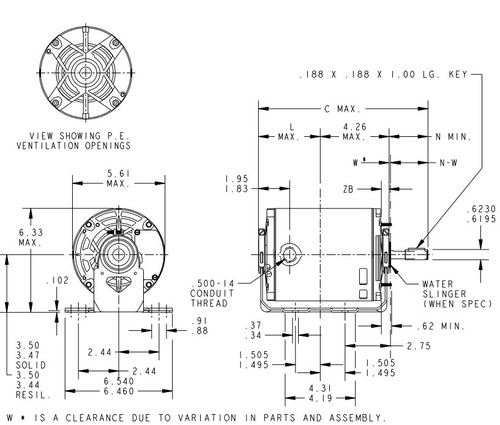

- NEMA 56Z Frame flat Shaft 2 1/4" x 5/8" Diameter, 1 speed
- Service Factor = 1.35, Thermal Protection = Auto
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. ODP = Open Drip Proof. 5KH35JN3132T
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/3 HP |
| RPM | 1800 |
| Frame | 56Z |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 6.2/3.1 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
