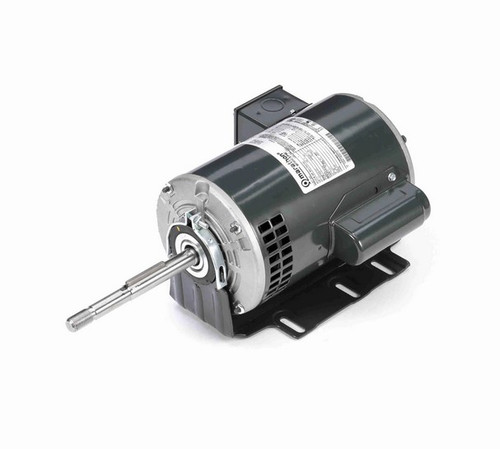

X602 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor

X602 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame PSC Resilient Base Motor

The X602 Marathon motor is a 1/2 horsepower, single-speed blower motor designed for commercial laundry dryers and HVAC applications. It replaces Huebsch gas commercial laundry dryer motors and is suitable for air circulation inside buildings.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 8.0/4.0-4.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: 5 5/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and includes automatic thermal protection. It requires control wiring for proper operation. The shaft orientation can be installed vertically or horizontally, making it versatile for various blower applications.

Cross Reference

• Huebsch gas commercial laundry dryer motors, control wires must be installed for motor to operate correctly

Warranty

1 Year Manufacturer Warranty
