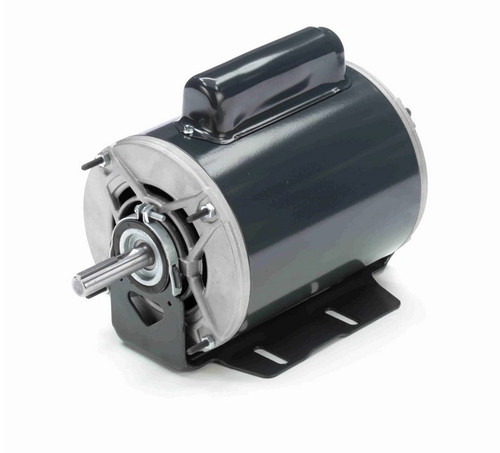

4688 Marathon 1 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame Cap Start Resilient Base Motor

4688 Marathon 1 hp (1 speed) 115/208-230V 1800 RPM ODP 56Z Frame Cap Start Resilient Base Motor

This Marathon 1 horsepower motor is designed for blower applications, providing reliable air movement inside buildings. It replaces Century models C523 and C523V1, as well as Dayton 4UB98, making it a versatile fit for various HVAC systems.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 14.4/7.2-7.2 A
• Enclosure: Open Drip Proof (ODP)

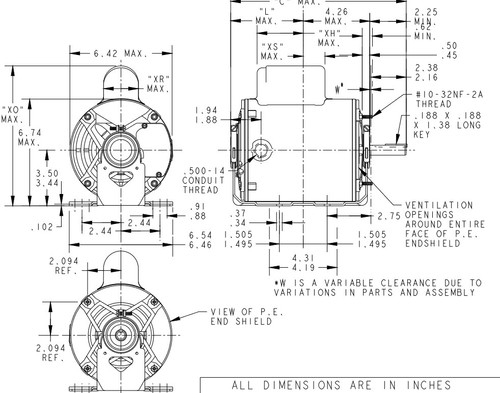

• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: Keyed shaft, 2 1/4" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and a resilient base for stable mounting and reduced vibration. It includes thermal protection with automatic reset and is designed for single-speed operation. The shaft orientation can be installed vertically or horizontally to suit different blower configurations.

Cross Reference

• Century C523, C523V1
• Dayton 4UB98

Warranty

1 Year Manufacturer Warranty
