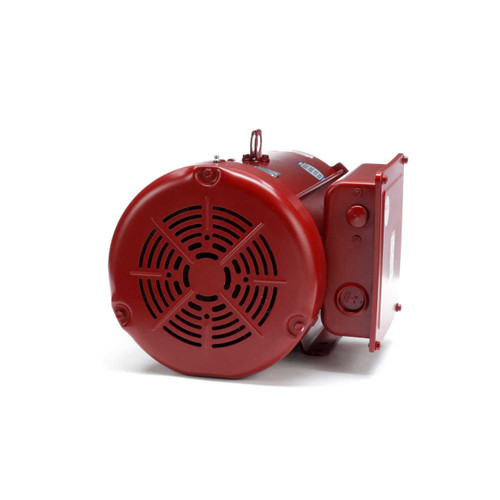

141432.00 Leeson | 5 hp 1740 RPM 215TZ Frame 230volts (Farm Duty) Extra High Torque

SKU:
141432
Weight:
150.00 LBS
Shipping:
Calculated at Checkout
Was: $1,403.00
Now: $1,032.00
Adding to cart… The item has been added
  • 5 hp 1740 RPM, 22.6 amps, 230 Volts 60hz.
  • NEMA 215TZ Frame Keyed Shaft 1 1/8" Diameter x 3 3/8"
  • TEFC Totally Enclosed Fan cooled - Service Factor = 1.15; Reversible
  • Class F Insulation; Manual Overload Protection
  • Produce up to 400% starting torque
  • One Year Manufacture Warranty

Leeson Farm Duty Extra High Starting Torque, Capacitor Start/Capacitor Run motor. Overall Length = 18.71" Excellent motor for any application requiring a 5 hp motor. This Totally Enclosed motor is Excellent for woodworking machines and other industrial machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 215TZ frame, flat base with 6 holes. Farm duty motors have many extra features over standard motors such as double sealed bearings with Exxon grease for a temperature range of -20F to +350F. Rubber boot over reset button provides additional protection. Gasketed junction box and capacitor covers. 1 Year Manufacture Warranty. Motor weight 150 lbs. SHIPS BY TRUCK - Should ship to business address.

Agricultural Motor

141432.00
