141427.00 Leeson | 7.5 hp 1800 RPM 215TZ Frame 230volts (Farm Duty) Extra High Torque

141427.00 Leeson | 7.5 hp 1800 RPM 215TZ Frame 230 Volts (Farm Duty) Extra High Torque Motor

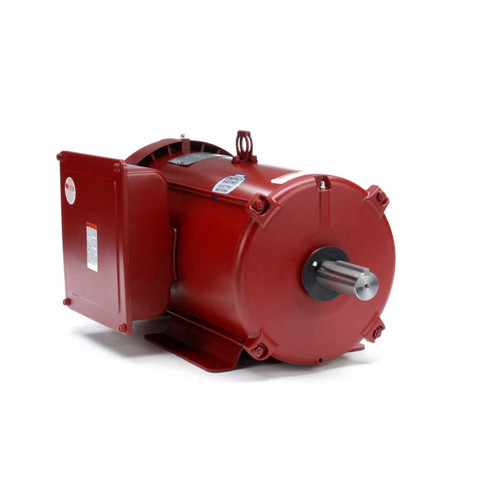

This Leeson 7.5 hp, 1800 RPM farm duty motor is designed for demanding industrial and woodworking applications. It replaces model 140209.00 and delivers extra high starting torque, making it ideal for equipment exposed to harsh environments such as sawdust, dirt, and oil.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230 Volts
• Amperage: 30.5 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 215TZ Frame
• Shaft Dimensions: Keyed Shaft, 1 1/8" Diameter x 3 3/8" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease, suitable for -20°F to +350°F

Product Features & Fitment

This capacitor start/capacitor run motor produces up to 400% starting torque and includes manual overload protection to prevent damage during overload conditions. It features a gasketed junction box and capacitor covers, along with a rubber boot over the reset button for enhanced protection. The motor mounts on a standard NEMA 215TZ flat base with six mounting holes. Due to its farm duty design, it is well-suited for environments with airborne particulates and temperature extremes. Shipping is by truck and should be directed to a business address.

Cross Reference

• 140209.00

Warranty

1 Year Manufacturer Warranty
