141434.00 Leeson | 7.5 hp 1740 RPM 215T Frame 230volts (Farm Duty) Extra High Torque

141434.00 Leeson | 7.5 hp 1740 RPM 215T Frame 230 Volts (Farm Duty) Extra High Torque

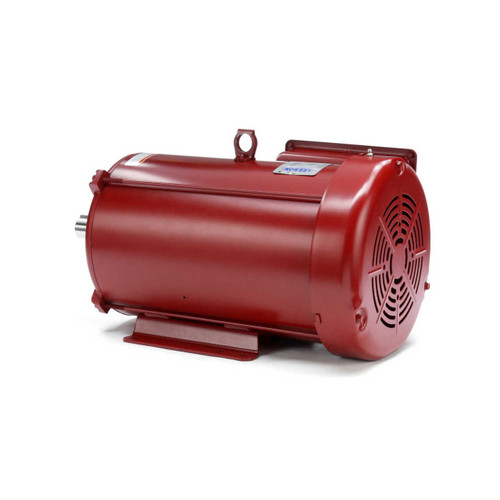

The Leeson 141434.00 is a 7.5 hp, 1740 RPM farm duty motor designed for demanding industrial and agricultural applications. It replaces model P215K17FB2L (140130.00) and is ideal for equipment exposed to harsh environments such as woodworking machines and other industrial machinery.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1740
• Voltage: 230 Volts, 60 Hz
• Amperage: 30.5 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

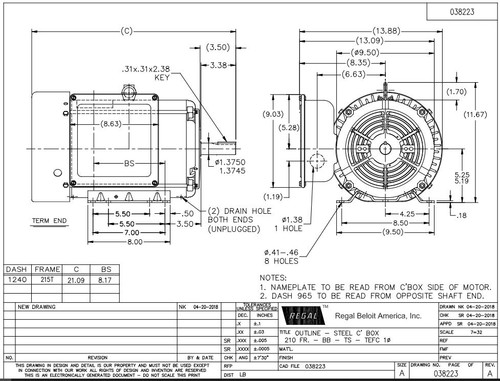

• Frame / Diameter: NEMA 215T Frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease, rated for -20°F to +350°F

Product Features & Fitment

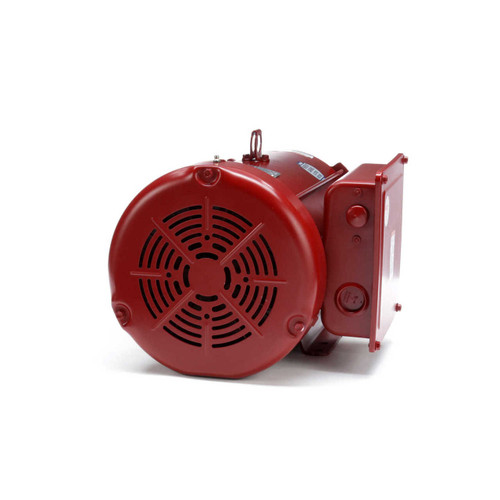

This motor features a capacitor start/capacitor run design with manual overload protection and produces up to 400% starting torque, making it well-suited for applications requiring extra high starting torque. The mounting is a standard NEMA 215T flat base with six bolt holes for easy installation. Additional farm duty enhancements include a gasketed junction box and capacitor covers, a rubber boot over the reset button for added protection, and durable construction to withstand exposure to sawdust, dirt, oil, and other airborne contaminants. The motor weighs 152 lbs and ships by truck to business addresses.

Warranty

1 Year Manufacturer Warranty
