C124C Marathon 5 hp 1725 RPM 184TC Frame ODP C-Face (no base) 208-230/460 Volts Electric Motor

C124C Marathon 5 hp 1725 RPM 184TC Frame ODP C-Face (no base) 208-230/460 Volts Electric Motor

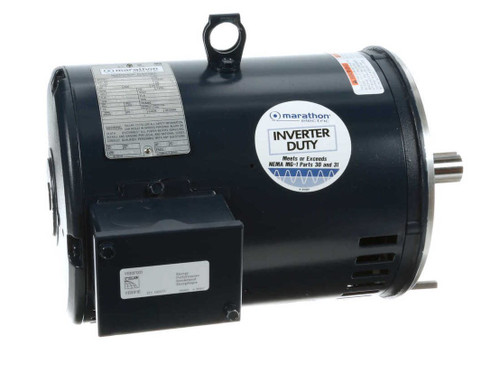

This Marathon 5 horsepower, 1725 RPM three-phase electric motor features a 184TC frame with an open drip proof (ODP) enclosure and C-face mounting. It is designed for general-purpose industrial applications and replaces models such as Leeson C184T17DC16C (131517.00).

Key Specifications

• Horsepower: 5 hp
• RPM: 1725
• Voltage: 208-230/460 Volts
• Amperage: 12.6/6.3 amps (230/460 Volts)
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184TC
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

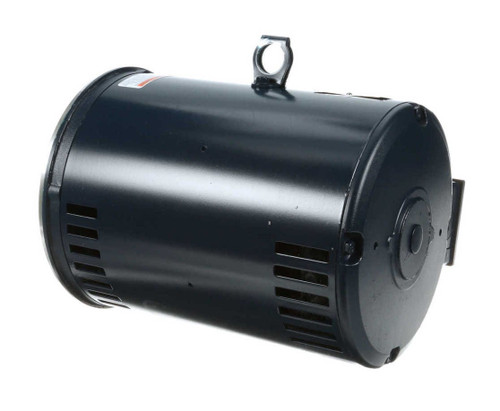

This motor features a round body design without a base, allowing flexible mounting options. The C-face includes four threaded bolt holes spaced 7 1/4" on center across the shaft for secure attachment of pumps or gear heads. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• Leeson C184T17DC16C, 131517.00

Warranty

1 Year Manufacturer Warranty
