GT1212A Marathon 5 hp 3600 RPM 184TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1212A Marathon 5 hp 3600 RPM 184TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

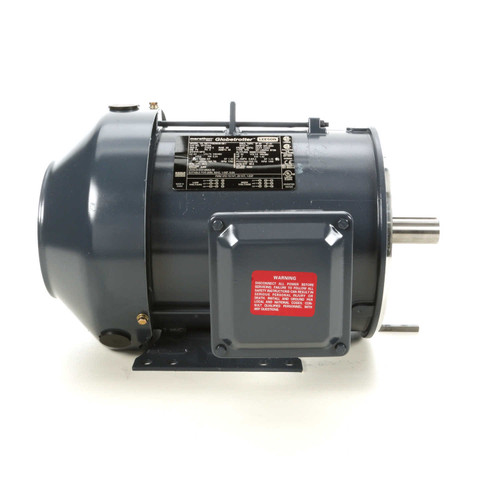

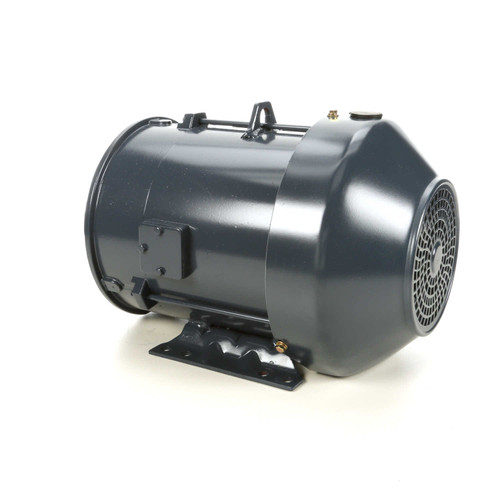

The GT1212A is a general-purpose, three-phase electric motor designed for a wide range of industrial applications. It replaces Leeson C184T34FK32B (132080.00) and features a rigid base with a C-face mount, suitable for direct coupling with pumps or gearheads.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 12.0/6.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 184TC

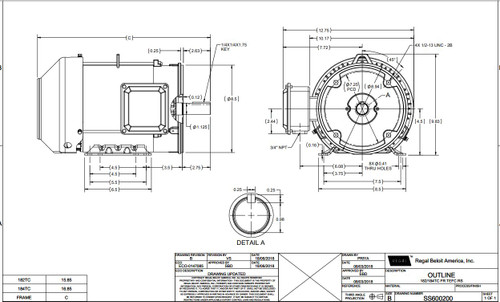

• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a C-face that includes threaded bolt holes for easy attachment of pumps or gearheads. The keyed shaft ensures secure coupling, and the wiring diagram is conveniently located on the motor nameplate for straightforward installation. Designed with Class F insulation and a service factor of 1.25, it provides reliable performance in demanding environments.

Cross Reference

• Leeson C184T34FK32B, 132080.00

Warranty

1 Year Manufacturer Warranty
