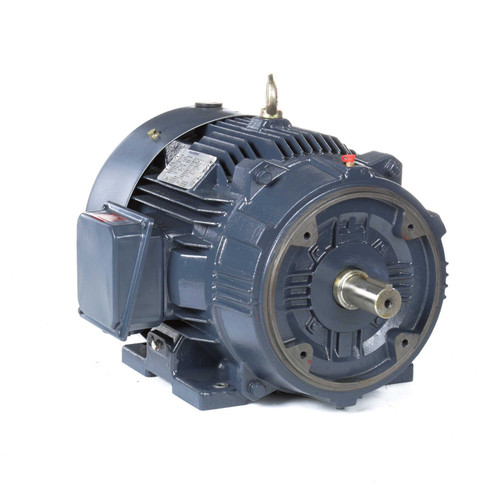

GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

Marathon

GT1236A Marathon 50 hp 3600 RPM 326TSC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$4,009.00
$3,662.95
SKU MGT1236
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
STATUS In Stock
Voltage 230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 326TSC
Enclosure TEFC
Hertz 60 Hz
Amperage 113.0/56.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description



  • 50 hp 3600 RPM, 113.0/56.5 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 326TSC Frame Keyed Shaft 1 7/8 " Diameter x 3 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

326TSTFCD6003 Replaces Leeson C326T34FK5A, 170112.60, B199069.00, 199069.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
STATUS In Stock
Voltage 230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 326TSC
Enclosure TEFC
Hertz 60 Hz
Amperage 113.0/56.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
