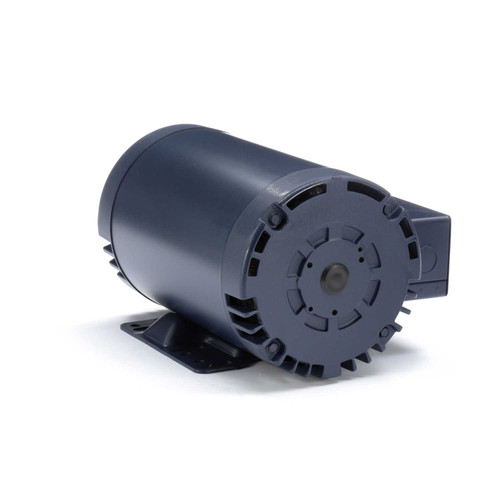

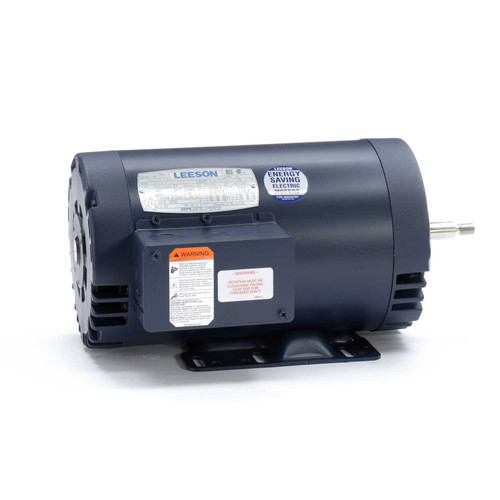

116699.00 Leeson | 5 hp 3600 RPM 56HJ Frame ODP C-Face (Rigid Base) 230/460V

116699.00 Leeson | 5 hp 3600 RPM 56HJ Frame ODP C-Face (Rigid Base) 230/460V

This Leeson 5 hp, 3600 RPM three-phase motor is designed for industrial pump applications requiring a 56J frame with a C-face mount. It serves as a reliable replacement motor for systems operating at 230/460V and 60 Hz.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 12.4/6.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a C-face mount with a round body and rigid base for secure installation. It includes four threaded bolt holes on the face, spaced 5 7/8" on center across the shaft, allowing direct pump mounting. The stainless steel shaft and Class F insulation ensure durability and reliable performance. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
