116698.00 Leeson | 5 hp 3600 RPM 56J Frame ODP C-Face (No Base) 230/460V

116698.00 Leeson | 5 hp 3600 RPM 56J Frame ODP C-Face (No Base) 230/460V

This Leeson 5 hp, 3600 RPM three-phase motor is designed for pump applications requiring a 56J frame with face mount configuration. It replaces standard 56J frame motors and is suitable for industrial and HVAC equipment needing reliable, high-performance operation.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460V
• Amperage: 12.4/6.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

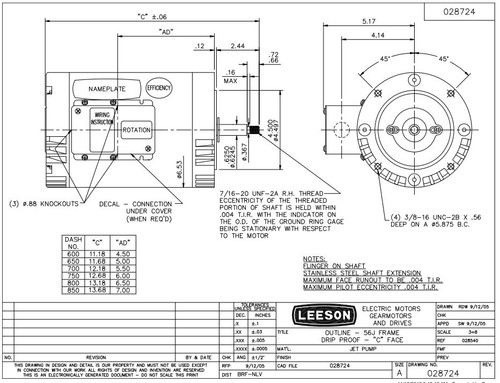

The motor features a round body with no base and a C-face mounting style, including four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump attachment. It has a stainless steel shaft and includes a wiring diagram on the motor nameplate for easy installation. The motor is rated with a service factor of 1.15 but does not include overload protection.

Warranty

1 Year Manufacturer Warranty
