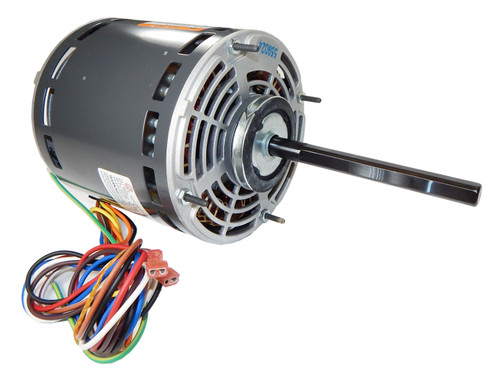

5542ET US-NIDEC RESCUE ECOTECH ECM MOTOR 3/4 HP 1075 RPM 48 FRAME
5542ET US-NIDEC RESCUE ECOTECH ECM MOTOR 3/4 HP 1075 RPM 48 FRAME

Nidec / US Motors

5542ET US-NIDEC RESCUE ECOTECH ECM MOTOR 3/4 HP 1075 RPM 48 FRAME

(No reviews) Write a Review
$400.00
$349.95
SKU 5542ET
UPC 786382099091
Availability IN STOCK, SHIP OUT TODAY
Shipping Free Shipping
Voltage 115/208/230V
Horsepower 3/4 HP
RPM 1075
Phase Single Phase
Frame 48
Type ECM
Amperage 5.7 Amps
Bearings Ball Bearings
Speeds Single-Speed
Duty Continuous Duty
Adding to cart… The item has been added
Description

US-NIDEC 5542ET RESCUE TECH ECM MOTOR

APPLICATIONS:  Drop-in replacement for PSC Direct Drive Commercial and Residential Air Handlers and Furnaces.

  • 3/4 HP
  • 1075 RPM
  • 48 FRAME
  • SINGLE PHASE
  • 115/208-230 VOLT
  • 9.6/6.2-5. & 9.6/6.1-5.7 AMP
  • SINGLE SPEED
  • OPAO
  • REVERSIBLE
  • NO BASE
  • 1/2" X 4.00" SHAFT WITH FLAT
  • 11.10" OVERALL LENGTH

FEATURES:  PSC, 5.6" Diameter, PM, Brushless, Continuous Duty Air Over, Ball Bearings, 36" Leads.

CROSS REFERENCE:  M055TYM0077015B

Specifications
Voltage 115/208/230V
Horsepower 3/4 HP
RPM 1075
Phase Single Phase
Frame 48
Type ECM
Amperage 5.7 Amps
Bearings Ball Bearings
Speeds Single-Speed
Duty Continuous Duty
!
