6138 Nidec 1/4 hp 1625 RPM 460V 5.6" Dia. (No Base) 1-Speed OPAO Condenser Motor
6138 Nidec 1/4 hp 1625 RPM 460V 5.6" Dia. (No Base) 1-Speed OPAO Condenser Motor
6138 Nidec 1/4 hp 1625 RPM 460V 5.6" Dia. (No Base) 1-Speed OPAO Condenser Motor
6138 Nidec 1/4 hp 1625 RPM 460V 5.6" Dia. (No Base) 1-Speed OPAO Condenser Motor

Nidec

6138 Nidec 1/4 hp 1625 RPM 460V 5.6" Dia. (No Base) 1-Speed OPAO Condenser Motor

(No reviews) Write a Review
$325.45
$269.95
SKU 6138
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/4 HP
RPM 1625
Hertz 50/60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.9 Amps
Bearings Ball Bearings
Speeds 1-Speed
Mounting Stud
Adding to cart… The item has been added
Description
  • 1/4 hp 1625 RPM, 0.9 amps 460V Volts 50/60 Hz PSC Motor
  • NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 3"
  • Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class A Insulation, CW lead end
  • 1 Year Manufacture Warranty

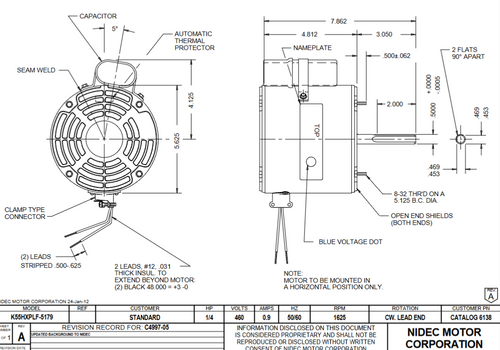

Condenser Fan Motor. Wiring diagram on motor name plate. OPAO = Open Drip Air Over, K055PLF5179363B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/4 HP
RPM 1625
Hertz 50/60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.9 Amps
Bearings Ball Bearings
Speeds 1-Speed
Mounting Stud
!
