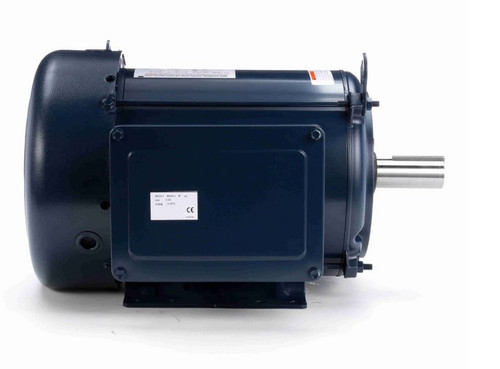

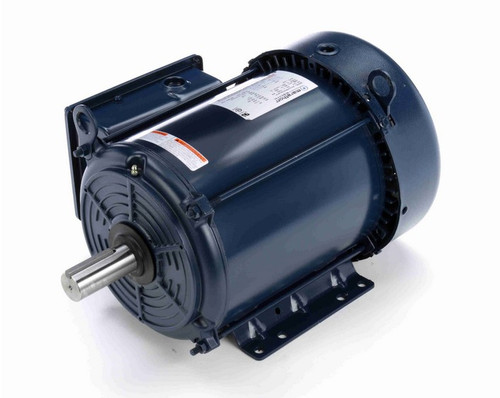

I224 Marathon 7 1/2 hp 3600 RPM 213T Frame 208-230V Totally Enclosed Marathon Electric Motor

I224 Marathon 7 1/2 hp 3600 RPM 213T Frame 208-230V Totally Enclosed Marathon Electric Motor

This Marathon 7 1/2 horsepower electric motor is designed for general-purpose applications requiring a reliable single-phase motor. It is a direct replacement for motors with similar specifications and is suitable for various industrial and HVAC equipment.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 3600
• Voltage: 208-230 V, 60 Hz
• Amperage: 36.0-32.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 213T
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with a rigid base mount for secure installation. It includes Class F insulation for enhanced durability and a wiring diagram located on the motor nameplate to assist with proper electrical connections. The motor does not include overload protection and is designed for versatile use across multiple applications.

Warranty

1 Year Manufacturer Warranty
