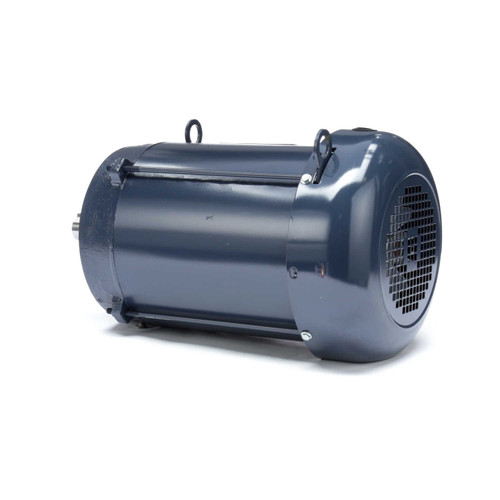

GT1316A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor

GT1316A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor

This Marathon electric motor delivers 7.5 horsepower at 1800 RPM and is designed for three-phase industrial applications requiring a C-face mount. It is a direct replacement for Leeson models C184T34FC32A and others, suitable for driving pumps, gear heads, and similar equipment.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 19.0/9.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 213TC
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a round body design with a C-face mount and threaded bolt holes on the face for easy attachment of pumps or gear heads. It does not include a base, allowing flexible installation options. The motor is equipped with a wiring diagram on the nameplate for straightforward electrical connections.

Cross Reference

• Leeson C184T34FC32A, 132561.00; B199087.00, 199087.00

Warranty

1 Year Manufacturer Warranty
