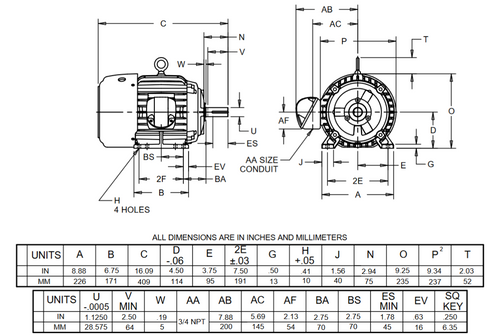

8P3P1C Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8P3P1C Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8P3P1C Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor
8P3P1C Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor

Nidec

8P3P1C Nidec 3 hp 3600 RPM 182T Frame (Rigid Base) 460V TEFC 3-Phase Inverter Duty Electric Motor

(No reviews) Write a Review
$993.60
$887.00
SKU 8P3P1C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 3.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 3 hp 3600 RPM, 3.9 amps  460 Volts 60 Hz Three Phase Motor
  • NEMA 182T Cast Iron Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 5 Year Manufacture Warranty, 3 year on inverter power

Corrosion resistant inverter duty motor is designed for use in petro-chemical and similar industries. Self-Certified Class 1, Division 2, Groups A, B, C, and D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DG68

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 3 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Type Inverter Duty
Amperage 3.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
