917L Century 1/6 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

917L Century 1/6 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

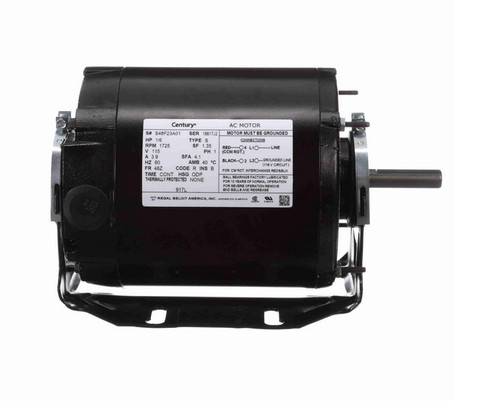

The 917L Century blower motor is a reliable replacement motor designed for HVAC blower applications. It delivers consistent airflow for residential and commercial air handling systems, featuring a resilient base for stable mounting.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1800
• Voltage: 115 V
• Amperage: 3.9 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Z
• Shaft Dimensions: 2" length x 1/2" diameter (flat shaft)
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This single-speed motor operates on 115 volts at 60 Hz with a split phase design and a service factor of 1.35. It features Class B insulation and is built with a resilient base for vibration reduction during operation. The motor shaft can be installed in either vertical or horizontal orientation to suit various blower configurations.

Warranty

1 Year Manufacturer Warranty
